High-density standalone OLT in 1U pizza box format — XGS-PON, XG-PON and GPON triple-mode combo PON for carrier networks, FTTx and enterprise.
U10 packs high-density XGS-PON into a 1U standalone unit — easy to install, easy to commission, and ready for multi-vendor networks.
All 8 PON ports run in XG(S)-PON & GPON combo mode by default (XGS-PON 9.953G/9.953G, XG-PON 9.953G down / 2.488G up), and any port can be switched to single GPON mode — start with GPON to keep initial investment low, then move to 10G as demand grows, without replacing the OLT chassis.
1×GE (RJ45) + 4× 10/25GE (SFP28) + 2× 40/50/100GE (QSFP28) uplinks on a 1,960 Gbps backplane with 566.928 Mpps forwarding — no bottleneck at the aggregation layer.
32K MAC, 4,096 VLANs, QinQ, LACP, QoS, IGMP snooping, DHCP server/relay, static, RIP v1/v2, RIPng and OSPF v2/v3 routing, T-CONT DBA and XGEM / GEM traffic — the full carrier feature stack in a pizza box.
6 kV power and 4 kV interface lightning protection, −20°C to +60°C operating range, 4-fan cooling, and flexible single/dual AC or DC power (AC 100–240 V) — built for central offices and remote sites.

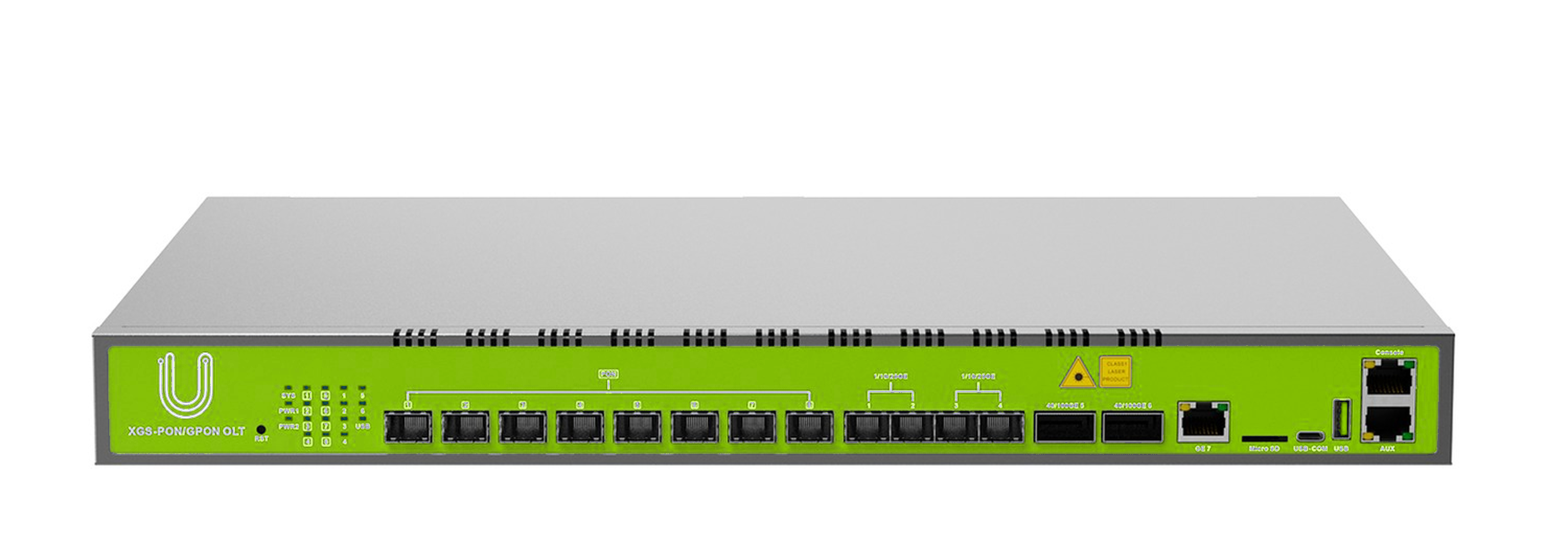

The full front-panel layout — PON, uplinks, management and indicators at a glance.
Three reference topologies — each built from UGrid products that work together end to end.
U10 feeds 1:256-split PON trees to UGrid XGS-PON or GPON ONTs. Combo ports let you mix both on the same chassis during migration.
U10 aggregates FiberTrix GPON PoE switches — fiber to the floor, PoE to APs and cameras, all managed from one OLT.
Pair with the uFT intelligent fiber testing system — real-time OTDR fault detection plus AI degradation forecasting on the same outside plant.
Every value below is from the official U10 datasheet. Contact us for interoperability test reports.
| PON | |
| PON ports | 8× XG(S)-PON / GPON combo PON ports (SFP+ slots) |
|---|---|
| Port mode | Combo mode on PON 1–8 by default; any port can be switched manually to single GPON mode |
| XGS-PON line rate | Upstream 9.953 Gbps; downstream 9.953 Gbps |
| XG-PON line rate | Upstream 2.488 Gbps; downstream 9.953 Gbps |
| GPON line rate | Upstream 1.244 Gbps; downstream 2.488 Gbps |
| PON SFP/SFP+ optics class | Combo mode: N2_C+; single GPON mode: Class B+, Class C, Class C+, Class C++, and vendor-defined high-power GPON optics |
| Wavelength | XG(S)-PON: 1270 nm up / 1577 nm down · GPON: 1310 nm up / 1490 nm down |
| Max split ratio | 1:256 (maximum) · 1:128 (recommended) |
| Max ONUs | 2,048 per unit |
| Transmission distance | 20 km |
| Uplinks & switching | |
| Uplink ports | 1 × GE (RJ45) + 4 × 10/25GE (SFP28) + 2 × QSFP28 (40GE / 50GE / 100GE) |
| Backplane bandwidth | 1,960 Gbps |
| Forwarding rate | 566.928 Mpps |
| Layer 2 / Layer 3 | |
| Layer 2 | 32K MAC · 4,096 VLANs · port VLAN, tag/untag, transparent, translation, QinQ · storm control · port isolation & rate limiting · 802.1D/802.1W · static/dynamic LACP · QoS (port/VID/TOS/MAC) · ACL · IEEE 802.3x flow control |
| Multicast | IGMP snooping · 2,048 IP multicast groups · MLD v1/v2 snooping · IGMP proxy |
| DHCP | DHCP server · DHCP relay · DHCP snooping · option 82 |
| Layer 3 | ARP proxy · 4,096 hardware host routes / 512 subnet routes · RADIUS, TACACS+ · IP source guard · static route, RIP v1/v2, RIPng, OSPF v2/v3, NDP · IPv6 |
| PON functions | T-CONT DBA · XGEM / GEM traffic · data encryption · ONT auto-discovery / link detection / remote upgrade · power-off alarm · broadcast-storm resistance · RSTP |
| Management | |
| Management interfaces | CLI (Console / Telnet / SSH) · WEB · SNMP · out-band 10/100/1000BASE-T · Console port · USB 3.0 · Type-C USB console · MicroSD |
| Management functions | Fan-group control · port status monitoring & configuration · online ONT configuration & management · user management · alarm management |
| Power & environment | |
| Power supply | AC 100–240 V (rated 110/220 V) or DC · configurations: 1× AC, 2× AC, 1× DC or 2× DC |
| Power consumption | 150 W |
| Cooling | 4 fans |
| Lightning protection | 6 kV (power) · 4 kV (interfaces) |
| Operating environment | −20°C to +60°C · 5%–95% humidity (non-condensing) |
| Storage environment | −40°C to +70°C · 5%–95% humidity (non-condensing) |
| Dimensions | 442 × 330 × 43.6 mm (W × D × H), 1U |
| Weight | 4.8 kg (net) |
The U10 is standards-based — ITU-T G.9807.1 (XGS-PON), G.987 (XG-PON) and G.984.x (GPON) — and interworks with ONUs from multiple vendors.
Everything engineers and procurement need — one click away.
Choosing between XGS-PON and GPON comes down to bandwidth and reuse.
| U10 XGS-PON / GPON Combo OLT | U5 GPON OLT | |
|---|---|---|
| PON standard | XGS-PON / XG-PON / GPON combo | GPON |
| PON ports | 8 (SFP+) | 1 / 4 / 8 / 16 |
| Per-port rate | 10G symmetric (XGS) · 10G/2.5G (XG) | 2.5G down / 1.25G up |
| Max split ratio | 1:256 (1:128 recommended) | 1:128 |
| Max ONUs | 2,048 | 2,048 |
| Uplinks | 1×GE + 4×10/25GE + 2×40/50/100GE | 10GE + GE |
| Best for | Greenfield 10G FTTH, high-bandwidth enterprise, future-proof builds | Cost-effective GPON FTTH, brownfield with existing GPON ONUs |
The U10 packs high-density XGS-PON into a 1U standalone unit: 8 combo PON ports serving up to 2,048 ONUs, with 9.953 Gbps symmetric XGS-PON line rate — carrier-grade PON without a chassis system.
Yes. PON ports 1–8 run in combo mode by default, and any port can be switched manually to single GPON mode, so GPON and XGS-PON ONTs can be mixed on the same chassis during migration.
The U10 is standards-based — ITU-T G.9807.1 (XGS-PON), G.987 (XG-PON) and G.984.x (GPON) — and interworks with ONUs from multiple vendors. UGrid's UNT SFP type XGS-PON ONT and UNT SFP type GPON ONT are verified with it.
1 × GE (RJ45), 4 × 10/25GE (SFP28) and 2 × QSFP28 ports (40GE / 50GE / 100GE), on a 1,960 Gbps backplane.
U10 pairs with UGrid ONTs, switches and fiber monitoring for an end-to-end solution.
