The UNT series is UGrid's family of XGS-PON ONUs — ITU-T G.9807.1 terminals that deliver symmetrical 10 Gbps fiber access to homes and small offices: wired 10GE models for pure bandwidth, and Wi-Fi 7 gateways with voice for the full-service home.
Every model terminates G.9807.1 XGS-PON at 10 Gbps up and down — no asymmetric bottleneck for cloud backup, video calls or content creation.
From a single 10GE port (UNTXK000) to 10GE + GE, 2.5GE + 3× GE, or the UNTXH2B0's 10GE + 4× GE with voice and USB.
BE3600 (UNTXI0A0) and BE7200 (UNTXH2B0) dual-band Wi-Fi 7 with MLO, 4096-QAM, MU-MIMO and Wi-Fi EasyMesh whole-home coverage.
The UNTXH2B0 adds two FXS ports with SIP VoIP (G.711 / G.722 / G.729) — phone service over the same fiber.
OMCI and TR-069 (plus TR-098 on the wired models) for remote provisioning, fault diagnosis, performance statistics and firmware lifecycle.
Full gateway software — PPPoE / DHCP / static IP, NAT, IPTV — or simple bridging behind the subscriber's own router.
Four models, one PON standard. Each model has its own catalog page — full specifications, ordering information and datasheet per model.
The pure 10G terminal: Class N1 XGS-PON to a single 10GE port, routing or bridging, in the 156 mm triangular desktop enclosure.
View UNTXK000 →

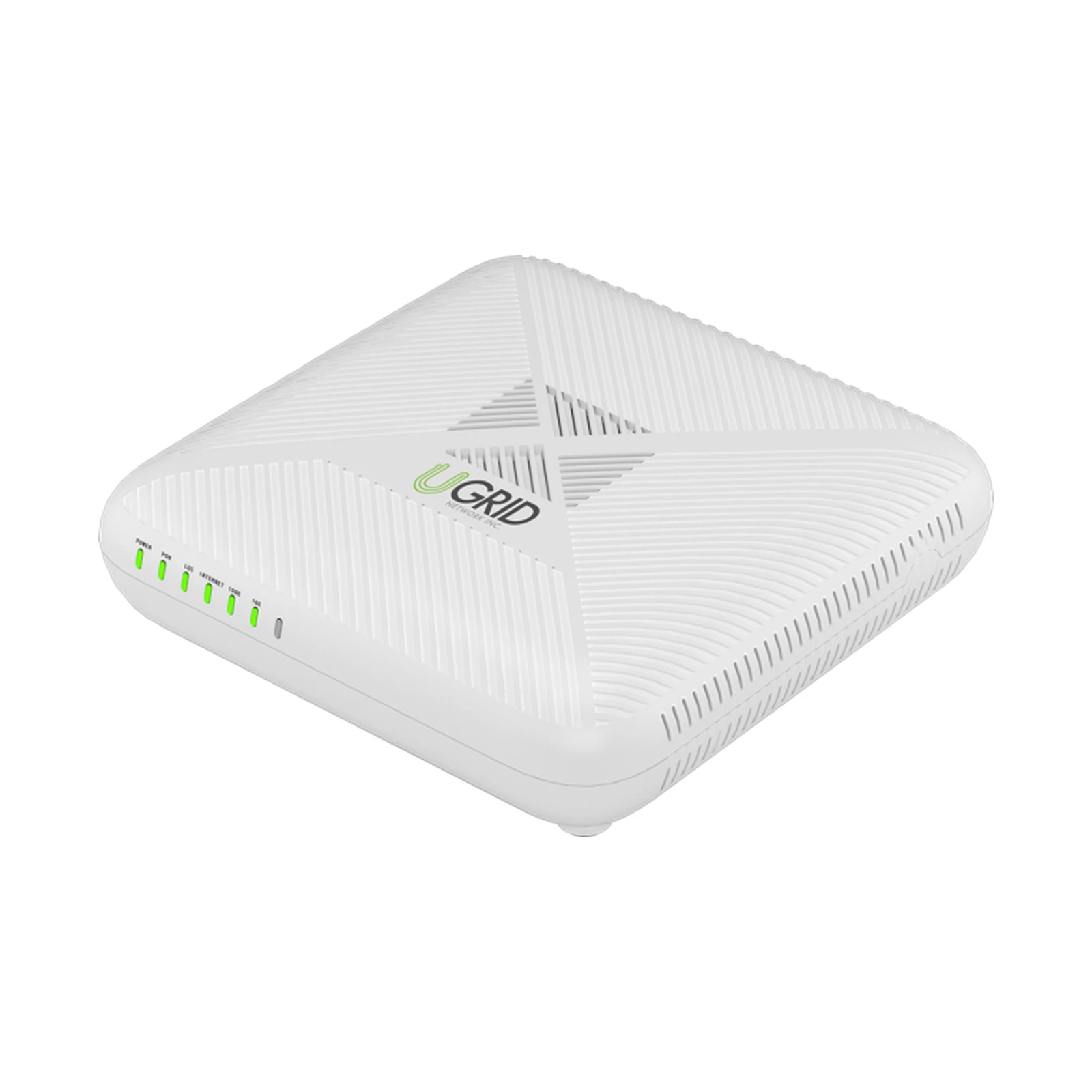

Same 10G terminal with a second GE port for IPTV, a work PC or a legacy switch — no extra hub at the premises.
View UNTXL000 →

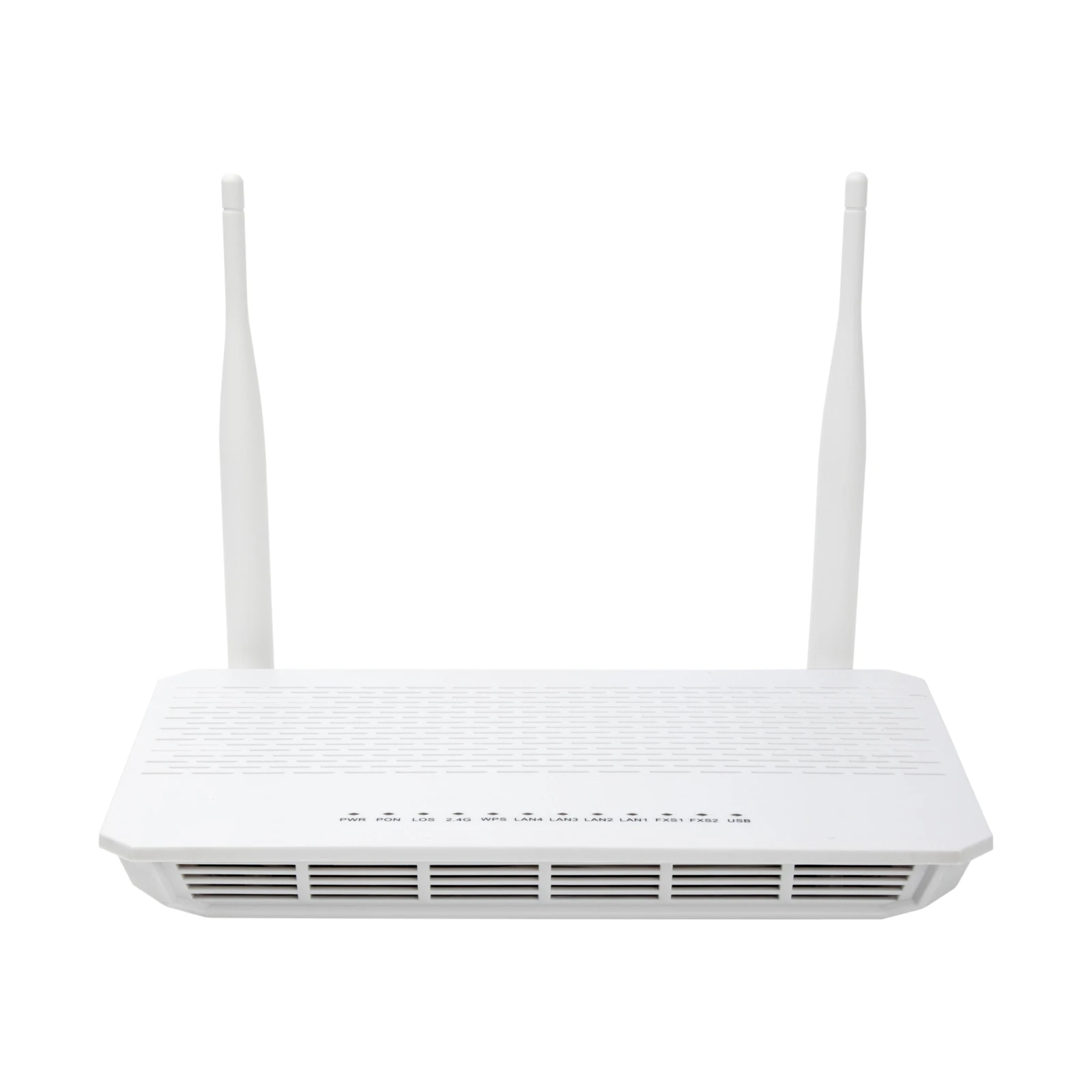

Wi-Fi 7 for the home: BE3600 dual-band with MLO and EasyMesh, 1× 2.5GE + 3× GE wired, two external antennas.
View UNTXI0A0 →

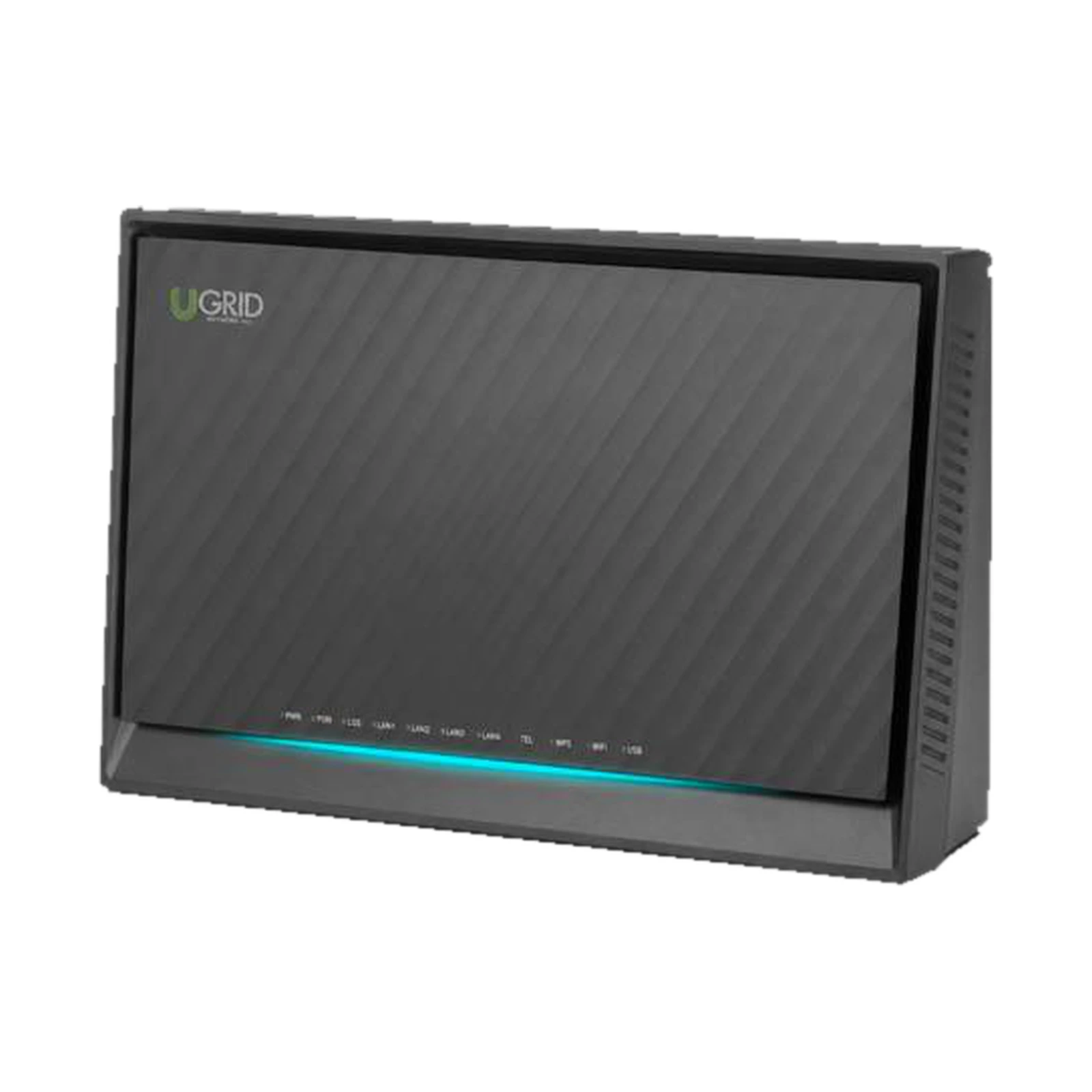

The full-service gateway: BE7200 4×4 Wi-Fi 7, 1× 10GE + 4× GE, 2× FXS voice and USB 3.0 in one ONU.
View UNTXH2B0 →Every UNT model terminates the XGS-PON network at the subscriber premises, connected through an optical splitter to a UGrid U10 OLT — the datasheet reference architecture for the whole series.
UGrid end-to-end XGS-PON FTTx architecture — UNT ONU at the subscriber premises
Each UNT model has its own catalog page with the complete specification table from its official datasheet.
All four models share the same XGS-PON foundation; they differ in LAN ports, Wi-Fi, voice and size. Full per-model tables are on each model's page.
| UNTXK000 | UNTXL000 | UNTXI0A0 | UNTXH2B0 | |
|---|---|---|---|---|
| LAN ports | 1× 10GE | 1× 10GE + 1× GE | 1× 2.5GE + 3× GE | 1× 10GE + 4× GE |
| Wi-Fi | — | — | Wi-Fi 7 BE3600, 2×2 MU-MIMO | Wi-Fi 7 BE7200, 4×4 MU-MIMO |
| Voice (FXS) | — | — | — | 2× FXS, SIP VoIP |
| USB | — | — | — | 1× USB 3.0 |
| PON optics | Class N1, SC/APC or SC/UPC | Class N1, SC/APC or SC/UPC | SC/APC, 1:128 split | SC/APC, 1:128 split |
| Dimensions | 156 × 156 × 38 mm | 156 × 156 × 38 mm | 202 × 128 × 35 mm | 264.2 × 176.8 × 73.5 mm |
| Power adapter | 12 V DC, 1 A | 12 V DC, 1 A | 12 V DC, 1.5 A | 12 V DC, 3 A |
Order by part number — each model is a complete, self-contained configuration (see the model number keys on each model's page).
An XGS-PON ONU (optical network unit) is the subscriber terminal of an XGS-PON fiber network: it terminates the fiber at the premises and delivers service to the home network. XGS-PON (ITU-T G.9807.1) runs 10 Gbps symmetrically — the same speed up and down — and UGrid's UNT series covers it with wired and Wi-Fi 7 models.
The UNT SFP sticks (UNT SFP type XGS-PON / GPON ONT) are ONUs in an SFP module that plug into a host device's SFP cage. The UNT series models on this page are standalone desktop ONUs with their own LAN ports — and, on two models, built-in Wi-Fi 7 and voice.
For a single wired 10G drop, the UNTXK000 (1× 10GE) or UNTXL000 (10GE + GE for a second device). For Wi-Fi 7 in the home, the UNTXI0A0 (BE3600, 2.5GE + 3× GE). For the full gateway — BE7200 Wi-Fi 7, 10GE + 4× GE, two voice lines and USB 3.0 — the UNTXH2B0.
Yes — the series is designed for the UGrid U10 XGS-PON / GPON combo OLT and is managed over OMCI (with TR-069 on all models), alongside UGrid's GPON line on the same shelf.
The wired UNTXK000 / UNTXL000 use Class N1 optics with up to 20 km reach; the Wi-Fi 7 UNTXI0A0 / UNTXH2B0 support a 1:128 split ratio and up to 20 km.
